Diesel Exhaust Fluid (DEF) Dosing Filter (Final Tier 4/Stage IV Engines)

1.

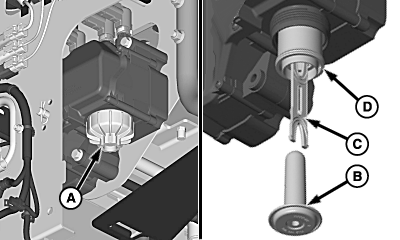

   H115823-UN-04SEP15

   A - Cap

   B - Equalizing Filter

   C - Filter Tool

   D - Filter

   Diesel Exhaust Fluid (DEF) contains urea. Do not get fluid in eyes. In case of contact, immediately flush eyes with large amounts of water for a minimum of 15 minutes. In event fluid is ingested, contact a physician immediately. Reference Materials Safety Data Sheet (MSDS) for additional information.

   Shut OFF engine, set park brake and remove key before performing maintenance work.

   If fluid is spilled or contacts any surface other than storage tank, immediately clean surface with clear water. Fluid is corrosive to painted surfaces and can distort some plastic and rubber components.

   Remove cap (A) and discard equalizing filter (B).

---




2. Use filter tool (C) to remove and discard filter (D).

3. Replace filter and equalizing filter. Install cap and tighten cap to specification. See Maintenance As Required (Engine Fluids and Filters) section for further information.

   Cap	Torque	20 N·m (177 lb·in)
