Engine Oil and Filter (Tier 2/Stage II and Tier 3/Stage IIIA)

1.
   H115672-UN-28AUG15

   Style A / Style B


   H115673-UN-28AUG15


   H115674-UN-28AUG15

   Style A / Style B

   A - Cap

   B - Oil Filter

   C - Drain

   D - Dipstick

   E - Cap

   F - Dipstick

   Change oil every 100 hours if fuel with a high sulfur content is used. See Fuels and Lubricants section for further information on sulfur content.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard™ (250 hours service interval). If using John Deere Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 hours extends to 375 hours.

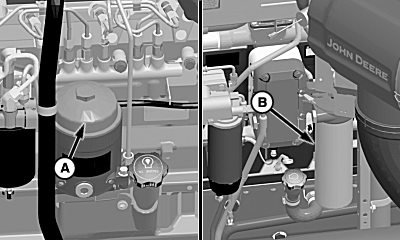

   Style A: Engine Crankcase Top Load Oil Filter: Remove cap (A) and remove filter. Replace filter and install cap. Tighten to specification.

   Oil Filter Cap	Torque	40 N·m (30 lb·ft)

   Style B: Engine Crankcase Oil Filter: Remove and replace oil filter (B).

---




2. Open drain (C) to remove oil.

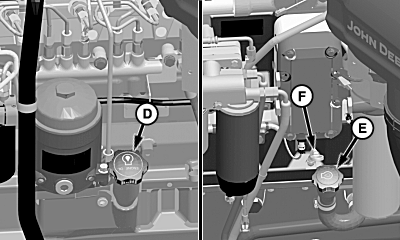

3. Style A: Engine Crankcase Top Load Oil Filter: Remove dipstick (D) to fill and check oil level after filling.

   Style B: Engine Crankcase Oil Filter: Remove cap (E) to fill and check oil with dipstick (F) after filling.
