Engine Oil and Filter (Final Tier 4/Stage IV)

1.
   H115675-UN-28AUG15

   Style A / Style B


   H115673-UN-28AUG15


   H115676-UN-28AUG15

   A - Cap

   B - Oil Filter

   C - Drain

   D - Dipstick

   Change oil every 250 hours when using other engine oils as specified in Fuels and Lubricants section.

   Change oil every 400 hours when using John Deere Plus-50™ II engine oil and a John Deere filter. See Fuels and Lubricants section for further information.

   Final Tier 4/Stage IV engines require Plus-50™ II engine oil or a API CK-4, API CJ-4, ACEA E9, ACEA E6 certified oils.

   Use only ultra low sulfur diesel (ULSD) fuel with a maximum sulfur content of 15 mg/kg (15 ppm).

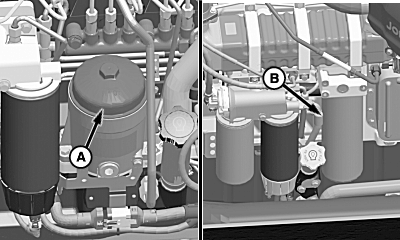

   Style A: Engine Crankcase Top Load Oil Filter: Remove cap (A) and remove filter. Replace filter and install cap. Tighten to specification.

   Oil Filter Cap	Torque	40 N·m (30 lb·ft)

   Style B: Engine Crankcase Oil Filter: Remove and replace oil filter (B).

---




2. Open drain (C) to remove oil.

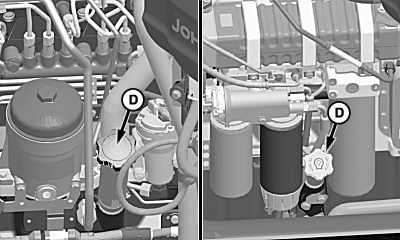

3. Remove dipstick (D) to fill and check oil level after filling.
