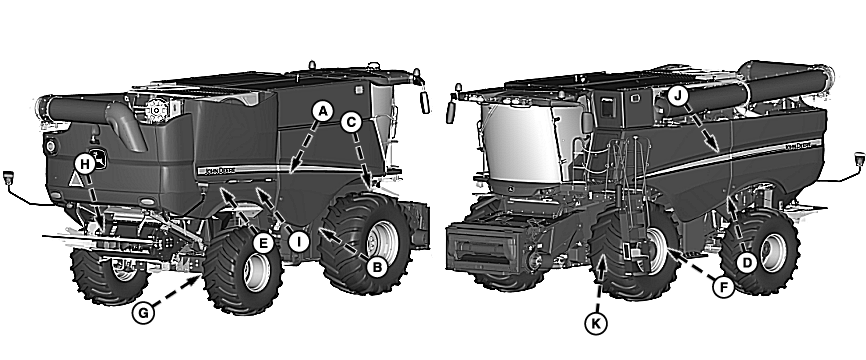

Service Interval Chart—Every 400 Hours (Continued)

H119654-UN-17OCT16

Legend	Service	Every 400 Hours
A	Grease Tailings Auger Drive Slip Clutch (S760 and S770 Machines)	●
B	Grease Conveyor Auger Drive Slip Clutch	●
C	Grease Right-Hand Side Lube Bank	●
D	Grease Overshot Beater Bearings (Optional) (S770, S780, and S790 Machines)	●
E	Grease Discharge Beater Bearings	●
F	Grease Cleaning Fan Shaft Bearings	●
G	Grease Rear Axle Tie Rod	●
H	Grease Spreader Disk (If Equipped)	●
I	Check Overshot Beater Gear Case Oil (Optional) (S770, S780, and S790 Machines)	●
J	Check Separator Drive Oil	●
K	Check Final Drive Oil	●
