ActiveVision™ Tailings System Camera (If Equipped)

H119876
H119876-UN-01NOV16

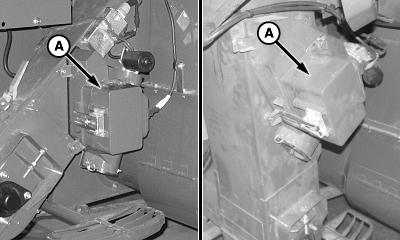

Style A / Style B

A - ActiveVision™ Tailings System Camera

Clean the camera lens once per week or as needed. Lens debris indicator in the software alerts the operator when the camera lens needs to be cleaned as system functionality may be reduced.

Cleaning frequency varies depending on a number of factors including operating conditions, weather, and crop conditions. Clean camera lens using a soft, moistened cloth.

Open latch and clean the ActiveVision™ tailings system camera (A).

ActiveVision is a trademark of Deere & Company

OUO6075,0004487-19-20170118
