Feeder House Bottom Door and Feed Plate Seal Support (Style B)

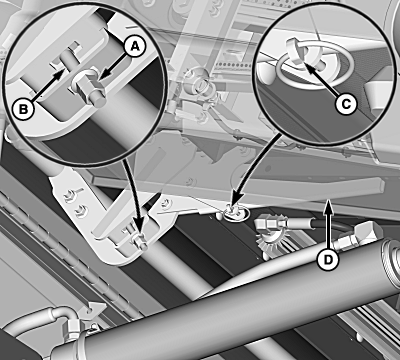

H120113-UN-29NOV16
A - Nuts
B - Round Head Bolt
C - Quick-Lock Pin
D - Lever
Raise feeder house, lower safety stop, shut OFF engine, set park brake and remove key.Remove nuts (A) and round head bolt (B) on both sides of the machine.
Remove quick-lock pin (C) and move lever (D) down and rearward.
Lever will be bent if left down when feeder house is lowered.
Push lever forward and up to close door. Retain with previously removed quick-lock pin.
Install previously removed round head bolt (B) and nuts (A) on both sides of the machine.
Feed Plate Adjustment

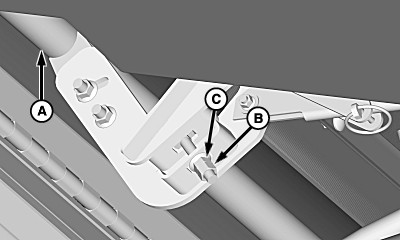

H120114-UN-29NOV16
A - Crossbar Support
B - Nut
C - Nut
If crossbar support (A) does not seal tightly against the feed plate, grain leakage could occur.On the side that has the gap, loosen nut (B) and tighten nut (C) as needed.
Tighten previously loosened nut (B) against nut (C).

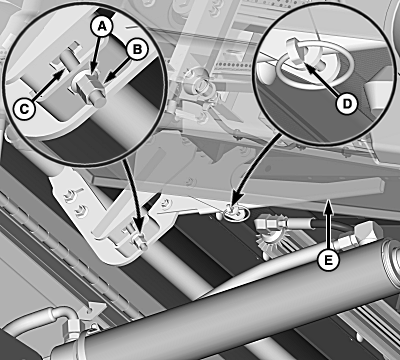

H120116-UN-29NOV16

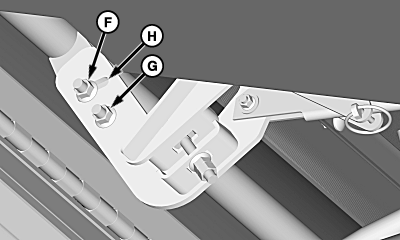

H120115-UN-29NOV16
A - Nut
B - Nut
C - Round Head Bolt
D - Quick-Lock Pin
E - Lever
F - Nut
G - Nut
H - Slot
If further adjustment is needed, remove nuts (A and B) from the round head bolt (C) on both sides of the machine.Remove quick-lock pin (D) and move lever (E) down and rearward.
Loosen nuts (F and G) and adjust crossbar support as needed in slot (H).
Tighten previously loosened nuts (F and G).
Lever should close easily without a high amount of force.
Push lever (E) forward and up to close door. Retain with the previously removed quick-lock pin (D).
Install previously removed round head bolt (C) and tighten nut (A) on both sides of the machine.
Tighten previously removed nut (B) against nut (A) on both sides of the machine.
|
OUO6075,0004553-19-20161202 |
