Tine Feed Accelerator Comb Floor (Rice Machines)

H105544
H105544-UN-20JUN12

H105543
H105543-UN-20JUN12

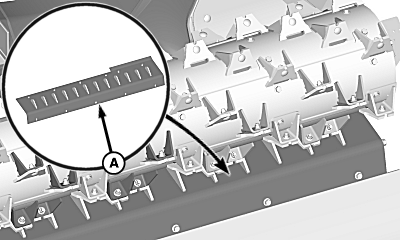

A - Comb Floor

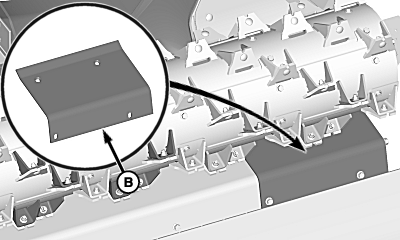

B - Smooth Liner Plate

Machine is shipped from the factory with the comb floor installed. Comb floor can only be run with the tine feed accelerator.

When the comb floor (A) is removed for harvest, the smooth liner plate (B) which was shipped with the machine must be installed (left side of the machine).


Non-Rice Harvest Information

  • Corn - Remove comb floor and install smooth liner plate.
  • Soybeans - If splits become a concern, remove comb floor and install smooth liner plate.
  • Small Grains - Remove the comb floor and install smooth liner plate.

OUO6075,0004557-19-20161202
