Cab Ladder Positions

H96381
H96381-UN-14MAY10

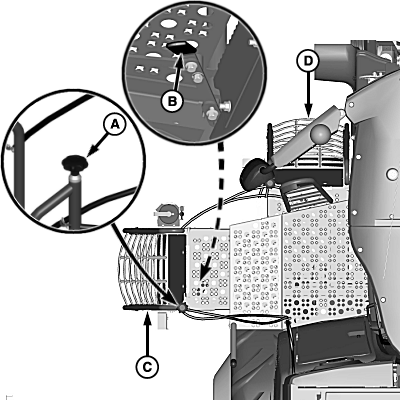

Ladder Positions (Single Tire Configuration)

H96380
H96380-UN-14MAY10

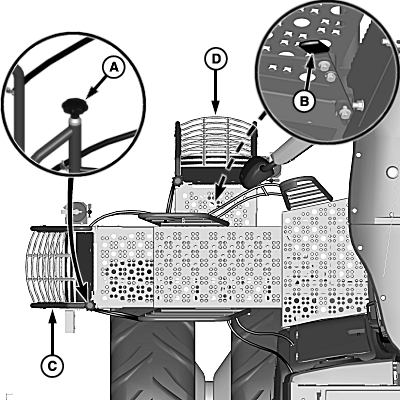

Ladder Positions (Dual Tire Configuration)

A - Handle

B - Lever

C - Field Position

D - Roadway Driving Position

Do not ride or attempt to climb front or rear ladders while machine is moving.

Ladder can be positioned from ground or on the ladder landing with handle (A) or lever (B).

If the ladder latch appears loose, clean out latch pin area. Do not use oil or grease in this area.

Swing ladder forward or rearward and lock into these different positions:

  • Position (C): is for the normal operating field conditions.
  • Position (D): is for transporting the machine on public roadways.

Always swing ladder to position (D) before transporting on public roadways in order to reduce machine width and position marker/hazard light towards oncoming motorists.
