ActiveVision™ Clean Grain Elevator Camera (If Equipped)

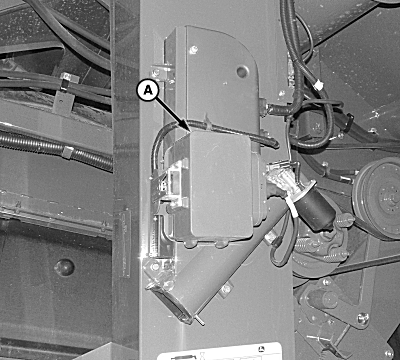

H120249-UN-09DEC16
A - ActiveVision™ Clean Grain Elevator Camera
Shut OFF engine, set park brake and remove key before servicing or removing camera.Lens debris indicator in the software alerts operator when the camera lens needs to be cleaned as the system functionality may be reduced.
Cleaning frequency varies depending on a number of factors including operating conditions, weather, and crop conditions. Clean camera lens using a soft, moistened cloth.
Open latch and clean the ActiveVision™ clean grain elevator camera (A).
|
ActiveVision is a trademark of Deere & Company |
OUO6075,0004566-19-20170111 |
