ActiveVision™ Tailings System Camera (If Equipped)

H120250
H120250-UN-09DEC16

ActiveVision™ Tailings Elevator Camera (Style A)

H120251
H120251-UN-09DEC16

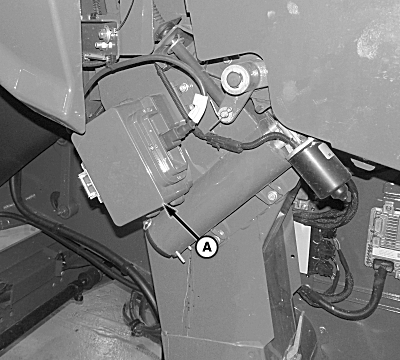

ActiveVision™ Tailings Elevator Camera (Style B)

A - ActiveVision™ Tailings System Camera

Shut OFF engine, set park brake and remove key before servicing or removing camera.

Lens debris indicator in the software alerts operator when the camera lens needs to be cleaned as the system functionality may be reduced.

Cleaning frequency varies depending on a number of factors including operating conditions, weather, and crop conditions. Clean camera lens using a soft, moistened cloth.

Open latch and clean the ActiveVision™ tailings system camera (A).

ActiveVision is a trademark of Deere & Company

OUO6075,0004567-19-20170124
