Cleaning Fan Belt (Without Active Terrain Adjustment™)—Replacing

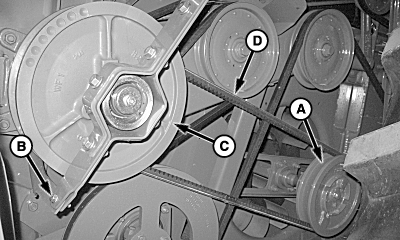

H96945-UN-17JUN10

A - Bottom Sheave

B - Support Arms

C - Upper Sheave

D - Belt

Disengage separator, shut OFF engine and remove key.

Shut OFF engine, set park brake and remove key.

Wedge bottom sheave (A) to full open position.

Disconnect support arms (B) and swing arms away.

Remove upper sheave (C) and pull belt (D) over lower sheave.

Install replacement belt, remove the wedge, and connect the support arms.

Check adjustment of cleaning fan speed.
