Cleaning Fan Actuator (Without Active Terrain Adjustment™)—Adjusting

H96946-UN-17JUN10

A - Nuts

B - End of Threads

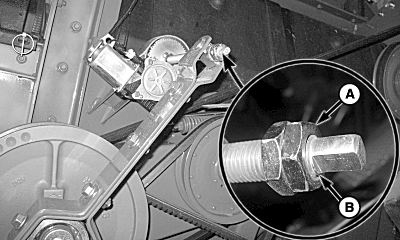

Cleaning fan minimum/maximum speed is controlled electronically. Stop nuts ensure drive protection, if there is an improper electronic speed setting. Nuts must be installed as shown.

Verify nuts (A) are jammed together at the end of the threads (B) as shown.
