Adjustable Front Chaffer (If Equipped)

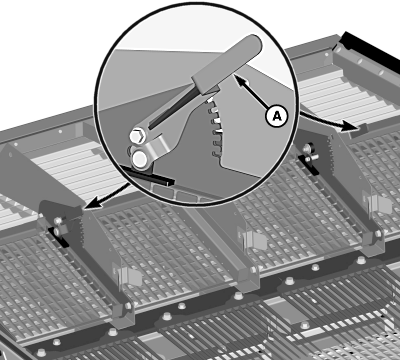

H120645
H120645-UN-31JAN17

A - Lever

Shut OFF engine, set park brake and remove key to help prevent accidental starting and personal injury.

Remove separator covers to access the front chaffer.

Adjust front chaffer to desired position with lever (A).

When the lever is fully raised, the front chaffer is fully closed. When the lever is fully lowered, the front chaffer is fully open. One notch is equal to approximately 4 mm (5/32 in).

OUO6075,00045AC-19-20170202
