Separator Variable Speed Driven/Driver Sheaves (S760 and S770 Machines)

H120805
H120805-UN-13FEB17

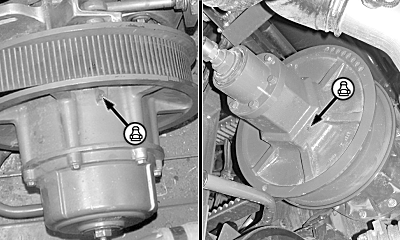

Driven Sheaves / Driver Sheaves

Separator Variable Speed Driven and Driver Sheaves: Pump 20—25 shots of grease into fitting. DO NOT OVER GREASE.

Separator Variable Speed Driven Sheaves: Rotate sheaves to access fitting.

Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

Separator Variable Speed Driver Sheaves: Close sheaves (high speed) before greasing fitting on the outer sheave hub. Rotate sheave to access fitting. Cycle cylinder speed to distribute grease if operated at high speed all the time.

OUO6075,00045DE-19-20170213
