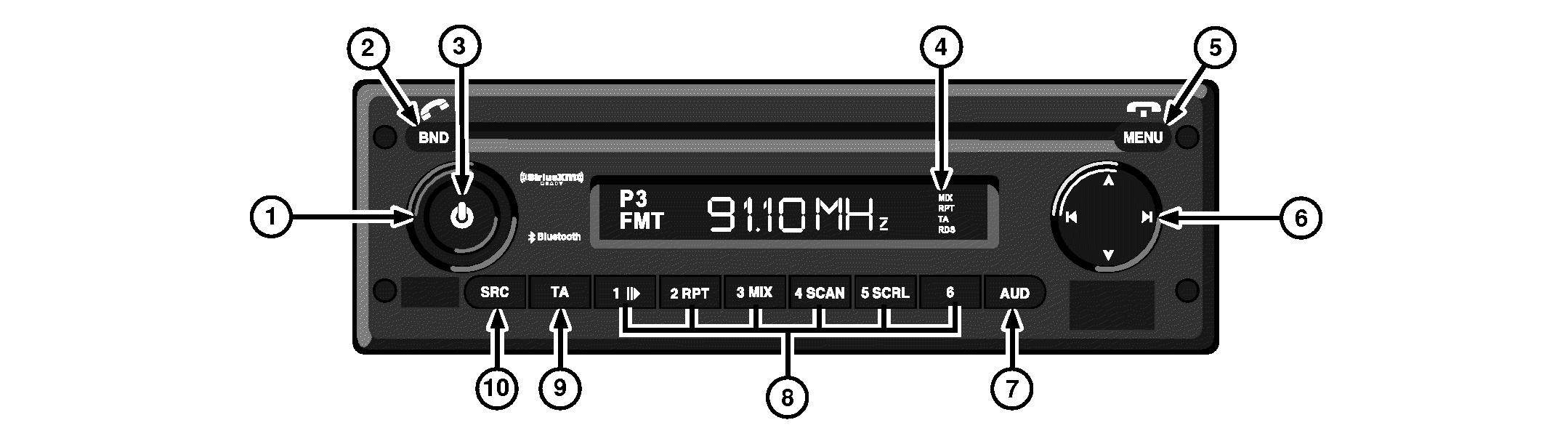

Radio Controls

H120834
H120834-UN-17FEB17

1 - Volume Control

2 - Band (BND) Key

3 - Power/Mute Key

4 - Radio Display

5 - Menu Key

6 - Multi-Function Rocker Switch

7 - Audio (AUD) Key

8 - Key Block (1—6)

9 - Traffic Announcements (TA) Key

10 - Source Select (SRC) Key

See Radio Operator’s Manual for further information.

OUO6075,00045E7-19-20170214
