ActiveYield™ (If Equipped) Cross Auger Covers—Removing

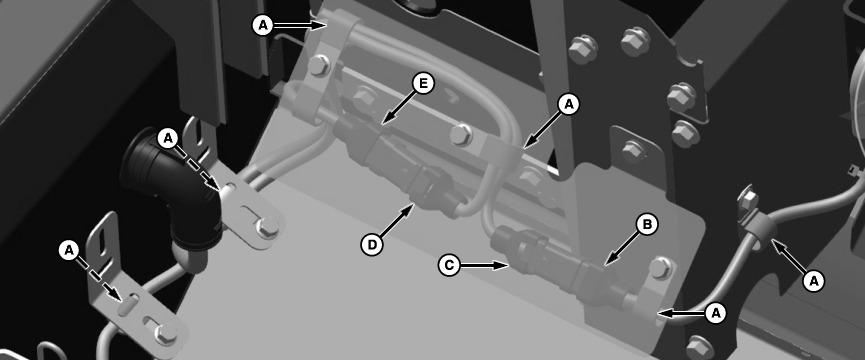

H115578-UN-25AUG15

A - Clamps

B - Rear Cross Auger Connector (Female Connector)

C - Grain Tank Connector (Male Connector)

D - Front Cross Auger Connector (Male Connector)

E - Grain Tank Connector (Female Connector)

Use extra care when removing and installing auger covers. Do not stand on, drop or allow objects to fall onto sensors.

In certain crop conditions and speciality crops, cross auger covers need to be removed.

ActiveYield™ system MUST be disabled when cross auger covers are removed. See Calibrations Application Help or Operator’s Station Help for further information.

Remove wiring harnesses from clamps (A) as needed.

Disconnect rear cross auger connector (B) from the grain tank connector (C).

Disconnect front cross auger connector (D) from the grain tank connector (E).

Connect grain tank connectors (C and E) together and retain with clamps as needed.

Connect harnesses together to enable yield monitoring even if ActiveYield™ is disabled. Retain harnesses with clamps to prevent contact with cross augers.

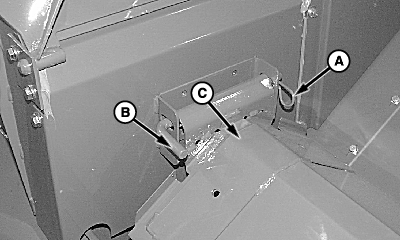

H80947-UN-27MAY04

A - Locking Pin (4 used)

B - Pin (4 used)

C - Auger Cover (2 used)

Remove auger cover from the machine and repeat on remaining auger cover.
