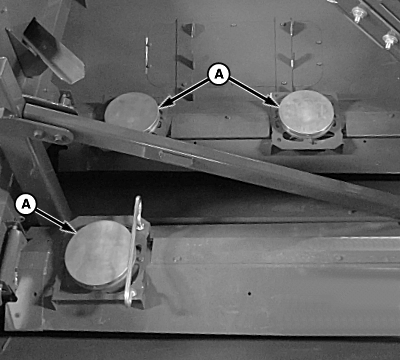

ActiveYield™ (If Equipped) Sensor Locations
H115545-UN-20AUG15
A - Sensors
Do not stand on, drop or allow objects to fall onto sensors as damage could occur.Two sensors are on the front cross auger cover and one sensor is on the rear cross auger cover.
ActiveYield™ uses sensors (A) located in the grain tank on the cross auger covers to measure mass of harvested grain.
|
