Concave Leveling (Standard Concave Adjust)

1.
   H111238-UN-13MAY14

   A - Separator Cover

   Round bar concave covers (if installed) should be removed prior to beginning concave leveling.

   Remove shielding as needed to access separator inspection covers.

---




2. Remove separator inspection covers (A).

3.
   H100377-UN-22FEB11

   A - Cap Screw (4 used)

   B - Separator Grate

   Removing separator grate provides access for rotating rotor.

   Remove cap screws (A) and separator grate (B).

---




4.

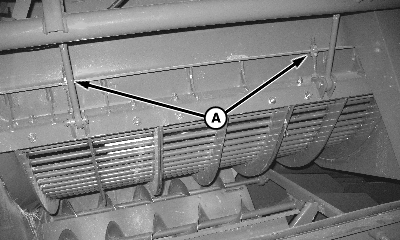

   H100391-UN-23FEB11

   A - Stop Bolts (2 used)

   Back off stop bolts (A).

---




5.

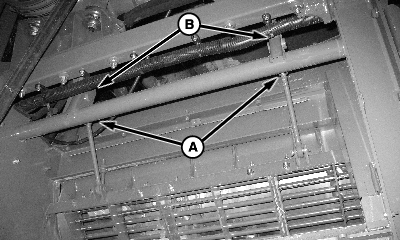

   H100392-UN-23FEB11

   A - Bottom Nut (2 used)

   B - Top Nut (2 used)

   Loosen lock nuts (A) and back off nuts (B) five turns each.

---




6.

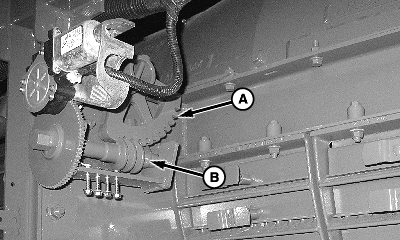

   H100393-UN-23FEB11

   A - Sector Gear

   B - Worm Gear

   Adjust concave to closed position using switch in cab until the worm gear (B) and sector gear (A) are bottomed out in up position.

---




7.
   H96927-UN-17JUN10

   A - Handle

   B - Neutral Position

   Move handle (A) to shift the rotor gear case in neutral position (B).

---




8.

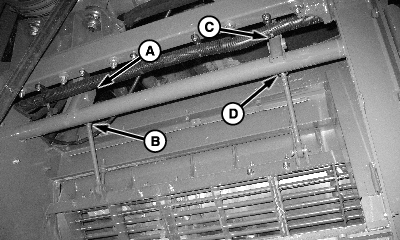

   H100394-UN-23FEB11

   A - Front Eyebolt Top Nut

   B - Front Eyebolt Bottom Lock Nut

   C - Rear Eyebolt Top Nut

   D - Rear Eyebolt Bottom Lock Nut

   Adjust front eyebolt top nut (A) slowly until elements ”tick” concave while rotor is rotating counterclockwise. Back off three complete turns.

---




9. Adjust rear eyebolt top nut (C) slowly, until elements ”tick” concave while rotor is rotating counterclockwise. Back off three complete turns.

10. Adjust front eyebolt top nut (A) down slowly until elements ”tick” concave. Back off slowly until ”tick” stops. As soon as ”tick” has stopped back off one complete turn and tighten top lock nut.

11. Adjust rear eyebolt top nut (C) down slowly, until elements ”tick” concave. Back off slowly until ”tick” stops. As soon as ”tick” has stopped back off one complete turn and tighten top lock nut.

12. Tighten bottom front concave adjustment nut. Hold front eyebolt top nut (A) with wrench and tighten front eyebolt bottom lock nut (B).

13. Tighten bottom rear concave adjustment nut. Hold rear eyebolt top nut (C) with wrench and tighten rear eyebolt bottom lock nut (D).

14.

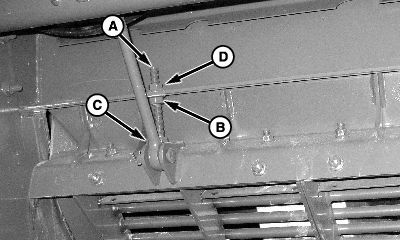

    H100395-UN-23FEB11

    Stop Bolts

    A - Stop Bolt (2 used)

    B - Lock Nut

    C - Head of Bolt

    D - Lock Nut

    Adjust front and rear concave stop bolt (A) by tightening bottom nut (B) until head of bolt (C) is snug against concave. Tighten top nut (D) while holding bottom nut (B) with wrench.

---




15.
    H100377-UN-22FEB11

    A - Cap Screw (4 used)

    B - Separator Grate

    Install separator grate (B) and retain with cap screws (A).

---




16. Shift rotor drive gear case to previous position.

17. Install previously removed separator inspection covers and shields.

18. Select Threshing Clearance Calibration (STS Electric) from inside the cab and follow information shown on the display. See Calibrations Application Help or Operator's Station Help for further information.
