Standard Discharge Beater Wear Strips—Replacing (8 Wing Style)

H85626-UN-27MAR06

H85627-UN-27MAR06

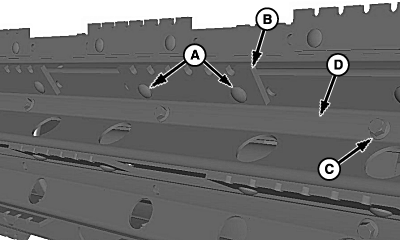

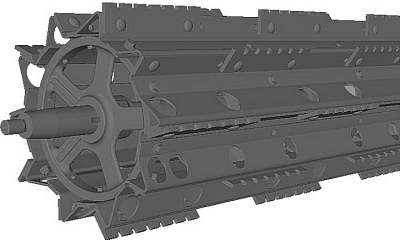

Discharge Beater Wings and Wear Strips (Standard)

A - Round Head Bolts

B - Discharge Beater Wear Strip

C - Cap Screws

D - Discharge Beater Wings

Wear strips can be reversed for additional wear.

Discharge beater wings and wear strips can be replaced without removing the discharge beater. Replace discharge beater wings in sets of two and opposite of each other to maintain proper balance.

If discharge beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings.

Remove round head bolts (A) and replace discharge beater wear strips (B) as required. Tighten round head bolts to specification.

Discharge Beater Wear Strip Round Head Bolts	Torque	70 N·m (52 lb·ft)

Remove cap screws (C) and replace discharge beater wings (D) as required. Tighten cap screws to specification.

Discharge Beater Wing Cap Screws	Torque	70 N·m (52 lb·ft)
