Gull Wing Door Cylinder Adjustment

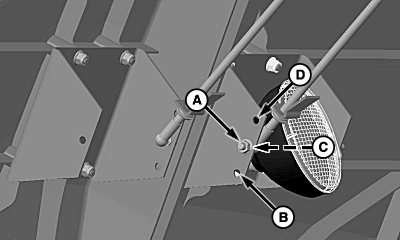

H121113
H121113-UN-20MAR17

A - Nut

B - Bottom Hole

C - Middle Hole

D - Upper Hole

Bottom hole is used to lower the overall height of the gull wing door when in the open position. Upper hole is used to raise the overall height of the gull wing door when in the open position.

Remove nut (A) from the cylinder and move to the desired hole (B—D).
