Chaffer/Sieve Motor—Manual Adjust

1.

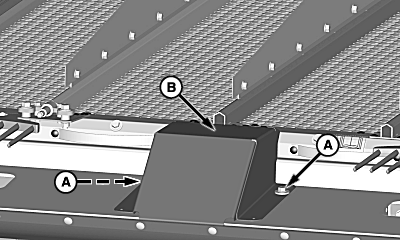

   H121330-UN-24APR17

   A - Cap Screws

   B - Cover

   Shut OFF engine, set park brake and remove key to help prevent accidental starting and personal injury.

   Same manual adjust procedure can be used on the chaffer/sieve motor.

   Remove cap screws (A) and cover (B).

---




2.

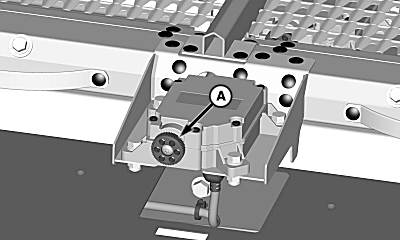

   H119699-UN-24OCT16

   A - Knob

   To prevent adjusting motor damage, do not use a wrench on knob.

   Use knob (A) to adjust motor. Turn knob clockwise to close and counterclockwise to open chaffer/sieve.

---
