Tailings System Return Concave—Adjusting (Style B)

H97103-UN-13SEP10

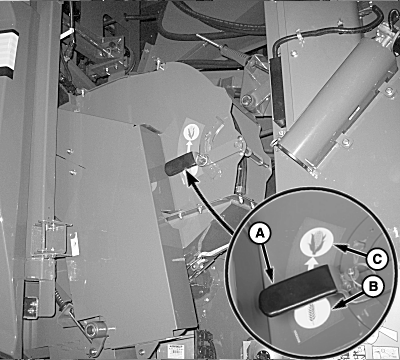

A - Crop Selection Handle

B - Small Grain Position

C - Large Grain Position

To prevent personal injury or machine damage do not move crop selection handle when machine is running.

See Crop Settings section for recommended tailings system concave position settings.

Small Grain Position (B):

Crop selection handle (A) should be in ”LOWER” position, when harvesting small grain crops.

Large Grain Position (C):

Crop selection handle (A) should be in ”UPPER” position, when harvesting large crops or damage-sensitive crops.
