Video Interface Capability

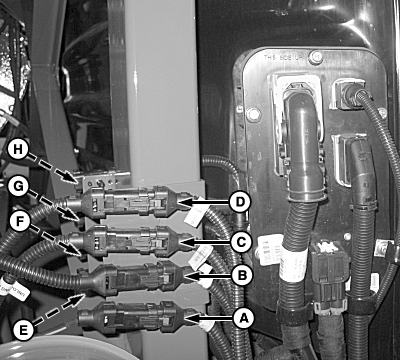

H119626
H119626-UN-12OCT16

A - Video Input 1 (Armrest)

B - Video Input 2 (Armrest)

C - Video Input 3 (Armrest)

D - Video Input 4 (Armrest)

E - Video Input 1 (Optional Display)

F - Video Input 2 (Optional Display)

G - Video Input 3 (Optional Display)

H - Video Input 4 (Optional Display)

Machine is equipped with eight camera video inputs which are located at the right-hand side of operator’s station.

Video input (A—D) feeds video signals to the server which then go to the armrest display.

Video input (E—H) feeds video signals to the optional GreenStar™ 3 2630 Display.

See your John Deere dealer for further information on video-compatible camera solutions.

GreenStar is a trademark of Deere & Company

OUO6075,0004684-19-20170320
