Tine Feed Accelerator Comb Floor (Rice Machines)—Removing
H99239-UN-01DEC10
A - Quick-Lock Pin
B - Lever
Raise feeder house, lower safety stop, shut OFF engine, set park brake and remove key.Remove quick-lock pin (A) and move lever (B) up to open stone trap.

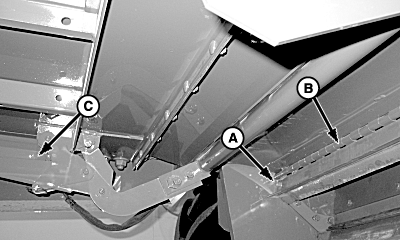

Feed Plate (Style A)
H86271-UN-10JUL06
A - Cap Screws and Nuts
B - Feed Plate Assembly
C - Lever
Remove and retain cap screws and nuts (A) on both sides of the machine.Remove quick-lock pin and move lever (C) down and rearward while removing feed plate assembly (B) at the same time.
Raise lever (C) and retain with previously removed quick-lock pin.

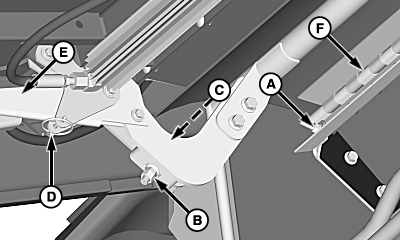

Feed Plate (Style B)
H120117-UN-29NOV16
A - Cap Screws and Nuts
B - Nuts
C - Round Head Bolt
D - Quick-Lock Pin
E - Lever
F - Feed Plate Assembly
Remove and retain cap screws and nuts (A) on both sides of the machine.Remove nuts (B) and round head bolt (C) on both sides of the machine.
Remove quick-lock pin (D) and move lever (E) down and rearward while removing feed plate assembly (F) at the same time.
Raise lever (E) and retain with previously removed round head bolt (C) and retain with previously removed nuts (B) on both sides of the machine.
Install previously removed quick-lock pin (D).

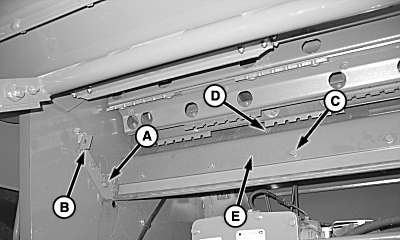

H121116-UN-21MAR17
A - Hardware (2 used)
B - Brackets (2 used)
C - Cap Screws and Nuts (5 used)
D - Plow Bolts
E - Comb Floor
Remove and retain hardware (A) and bracket (B) from both sides of the machine.Remove and retain cap screws and nuts (C).
Remove and retain plow bolts (D) and remove the comb floor (E).

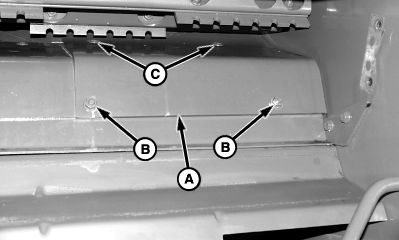

H105545-UN-21JUN12
A - Smooth Liner Plate
B - Cap Screws and Nuts (2 used)
C - Plow Bolts (2 used)
Install smooth liner plate (A) shipped with the machine on the left-hand side.Install previously removed cap screws and nuts (B).
Install previously removed plow bolts (C).
H121117-UN-21MAR17
A - Hardware (2 used)
B - Brackets (2 used)
C - Cap Screws and Nuts (3 used)
D - Plow Bolts (3 used)
Plow bolt must be installed in holes that previously held comb floor to prevent grain loss.Install previously removed plow bolts (D).
Install previously removed cap screws and nuts (C).
Install previously removed bracket (B) on both sides of the machine and retain with previously removed hardware (A).
Feed Plate (Style A)
H86271-UN-10JUL06
A - Cap Screws and Nuts
B - Feed Plate Assembly
C - Lever
Remove quick-lock pin and move lever (C) down and rearward.Install previously removed feed plate assembly (B) and retain with previously removed cap screws and nuts (A) on both sides of the machine.
Push lever forward and up to close feed plate door and retain with previously removed quick-lock pin.
Feed Plate (Style B)
H120117-UN-29NOV16
A - Cap Screws and Nuts
B - Nuts
C - Round Head Bolt
D - Quick-Lock Pin
E - Lever
F - Feed Plate Assembly
Remove nuts (B) and round head bolt (C) on both sides of the machine.Remove quick-lock pin (D) and move lever (E) down and rearward.
Install previously removed feed plate assembly (F) and retain with previously removed cap screws and nuts (A) on both sides of the machine.
Raise lever (E) and retain with previously removed round head bolt (C) and retain with previously removed nuts (B) on both sides of the machine.
Install previously removed quick-lock pin (D).
H99239-UN-01DEC10
A - Quick-Lock Pin
B - Lever
Move lever (B) down to close stone trap and retain with quick-lock pin (A).|
