Hydrostatic/Hydraulic Oil Level

H97523
H97523-UN-04AUG10

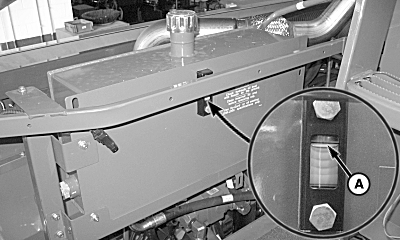

Style A

H106938
H106938-UN-14FEB13

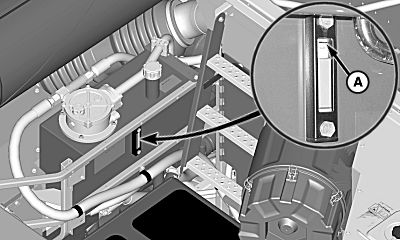

Style B

H106937
H106937-UN-14FEB13

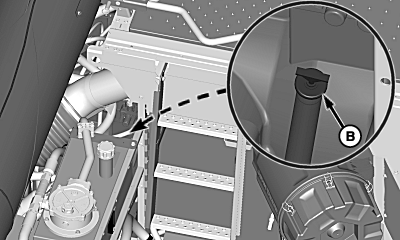

Hydraulic Oil Level (Engine Gear Case)

A - Sight Glass

B - Dipstick

Check hydrostatic/hydraulic oil level with header on ground and all cylinders retracted. Oil level must be at top of sight glass (A) with the feeder house fully lowered. Add oil as needed, but do not overfill.

Shut OFF engine, set park brake and remove key before checking hydraulic oil at the engine gear case. Oil must not be below "ADD" mark on dipstick (B).

OUO6075,00046C9-19-20170328
