Feeder House Reverser Drive Gear Case Oil
H115651-UN-27AUG15

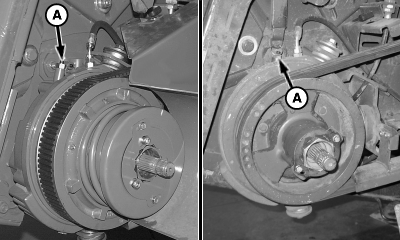

Variable Speed/Multi-Speed Reverser Gear Case
A - Dipstick
Raise feeder house and lower safety stop.Gear cases with an oil cooler require gear case to be run for several minutes. This ensures that the cooler is filled with oil.
Oil level must show on knurled part of dipstick.
Remove dipstick (A) and check oil level.
|
