Feeder House Reverser Gear Case

1.

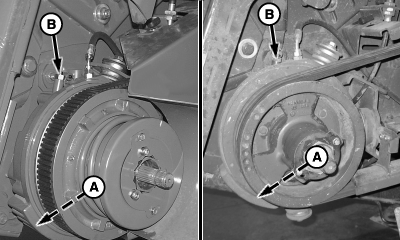

   H115801-UN-03SEP15

   Variable Speed / Multi-Speed Reverser Gear Case

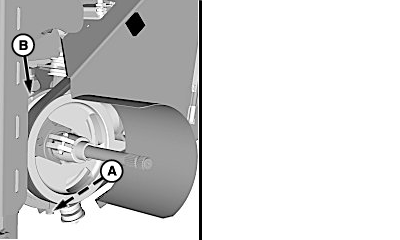

   H115802-UN-03SEP15

   Fixed Speed

   A - Plug

   B - Dipstick

   Raise feeder house and lower safety stop.

---




2. See Fuels and Lubricants section for oil recommendations.

   Drain oil at plug (A), wipe plug clean and refill dipstick opening (B).

3. Gear cases with an oil cooler require gear case be run for several minutes. This ensures that the cooler is filled with oil.

   Oil level must show on knurled part of dipstick.

   Check oil level with the feeder house raised up.
