Change Main Engine Gear Case Oil

1.
   H115805-UN-03SEP15


   H119733-UN-27OCT16


   H115807-UN-03SEP15

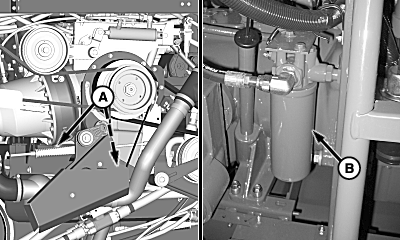

   A - Plugs

   B - Filter

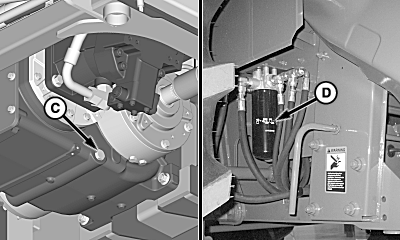

   C - Plug

   D - Filter

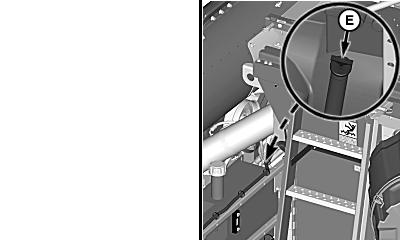

   E - Dipstick

   Main Engine Gear Case Oil - Drain oil at plugs (A).

---




2. S760 and S770 ProDrive™ Machines: Remove and replace filter (B). Coat seal on the new filter with oil. Hand tighten, then tighten 1/2 turn more.

3. ProDrive™ Machines: Transmission Oil - Drain oil at plug (C).

4. ProDrive™/Main Engine Gear Case Lube Filter - Remove and replace filter (D). Coat seal on the filter with oil. Hand tighten, then tighten 1/2 turn more.

5. Overfilling main engine gear case may cause oil to force dipstick tube out when machine is running.

   Fill Main Engine Gear Case

   1. Fill until oil is at the bottom line on dipstick (E).
   2. Install dipstick and run engine for one minute minimum.
   3. Shut OFF engine and let machine sit for five minutes allowing air to settle from oil.
   4. Remove dipstick and check oil level. Add oil until oil level is at the top line on dipstick.
   5. Repeat procedures until oil level remains at the top line on dipstick.
