Primary Countershaft Gear Case Oil (Fixed Speed and Variable Speed Feeder House)

H115817
H115817-UN-04SEP15

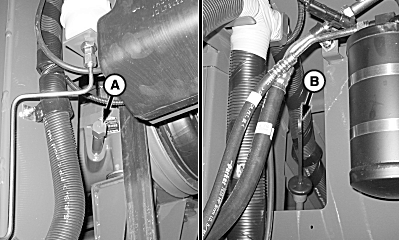

A - Cap

B - Dipstick

Drain at cap (A) and refill at dipstick (B).

Oil level must show on knurled part of dipstick.

OUO6075,00046E3-19-20170328
