Inline Fuses

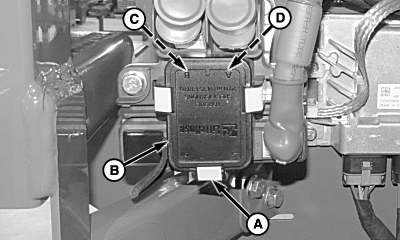

H121175
H121175-UN-04APR17

Style A

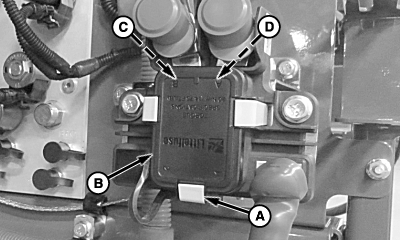

H121176
H121176-UN-04APR17

Style B

A - Latch (3 used)

B - Cover

C - F82—Inline Fuse

D - F92—Inline Fuse

Inline fuses are on the right-hand side or the left-hand side depending on the machine model.

Open latches (A) and remove cover (B) to access inline fuses.

  • F82—Inline Fuse, (125A) (cc# 8002), Control Unit CAB
  • F92—Inline Fuse, (125A) (cc# 8912), Cab Fuse Center
