General Windrowing Information (Premium Residue)
H118033-UN-05APR16
Windrowing Premium

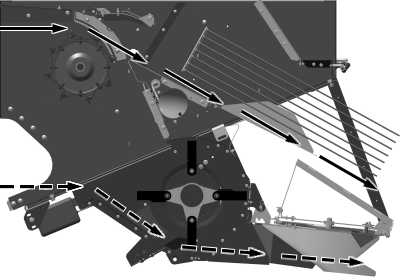

Solid arrows represent flow of straw. Dashed arrows represent flow of chaff.- To windrow straw and spread chaff, open chop-to-drop door (Premium Model). See Residue Management Application Help or Operator's Station Help for further information.
- If harvesting low straw volume crops, lower cob deflector into corn position. See Crop Diverter in this section for further information.
|
