PowerCast™ Tailboard (Optional) Rear Shrouds

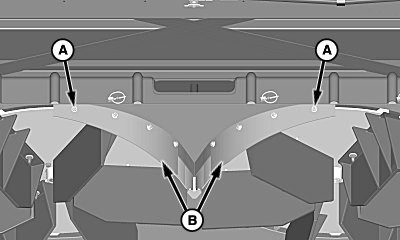

H98180
H98180-UN-22SEP10

A - Hardware (8 used)

B - Rear Shrouds

Shrouds can be removed to spread more material towards the center of the machine when harvesting in tough or heavy straw conditions.

Front and rear shrouds should always be installed to provide optimal material distribution when harvesting corn.

Field Position

Shrouds are used to manage residue spread width distribution for wider platforms.

Install rear shrouds (B) behind the welded strap as shown and retain with hardware (A).

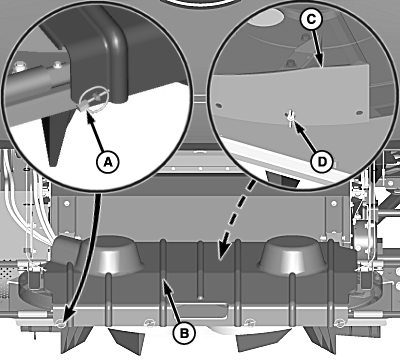

H98181
H98181-UN-22SEP10

A - Quick-Lock Pins

B - Shield

C - Rear Shrouds

D - Wing Nut

Storage Position

Remove and retain quick-lock pins (A) and shield (B).

Install rear shrouds (C) to weld stud as shown and retain with the wing nut (D).

Install previously removed shield and quick-lock pins.
