Accumulator

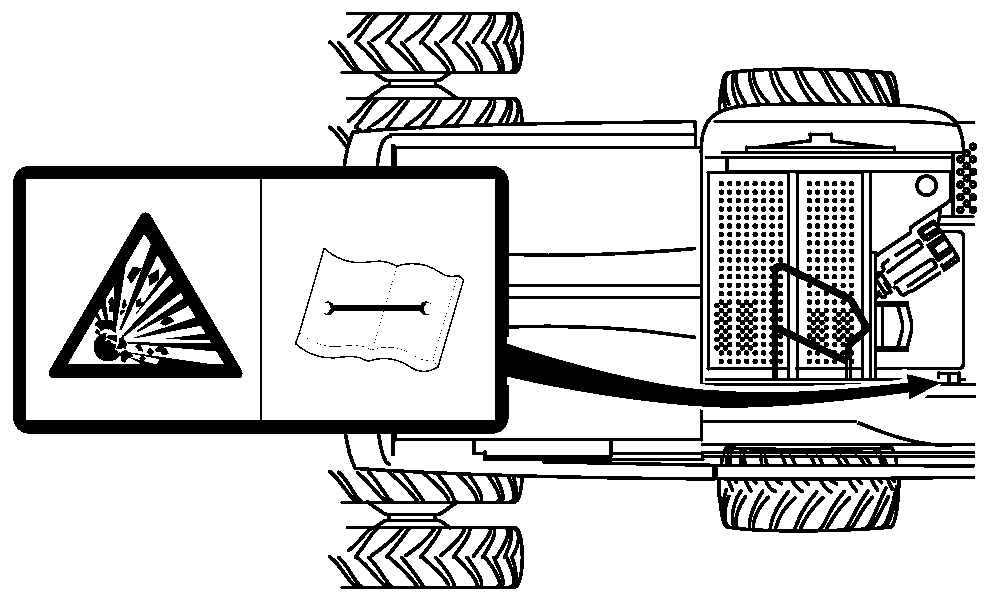

H108700
H108700-UN-08AUG13

(Located on Hydraulic Reservoir)

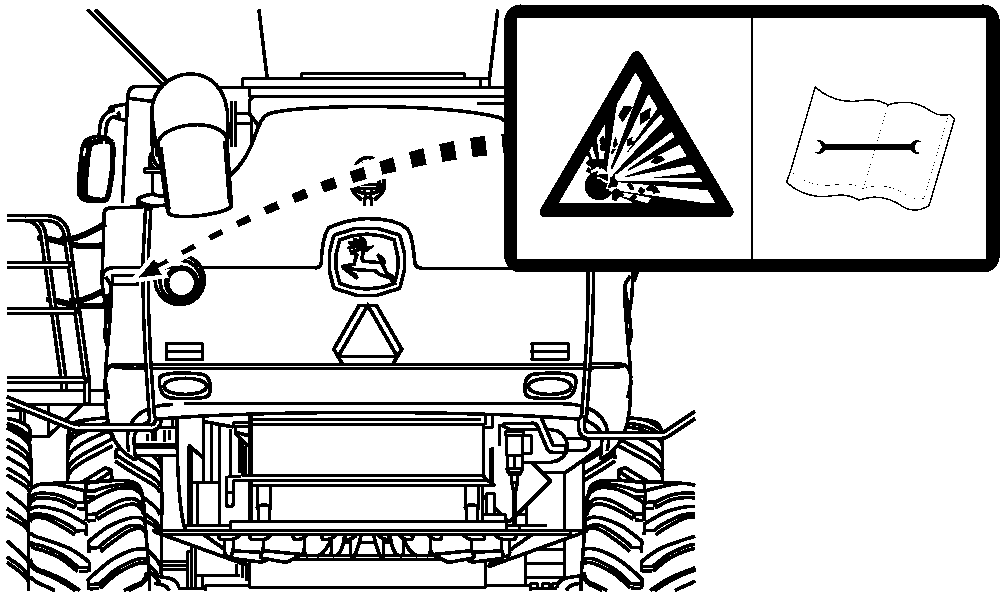

H108802
H108802-UN-09AUG13

S780 and S790
(Located Near Primary Control Valve)

To prevent the risk of injury as well as possible damage to the accumulator or hydraulic system, maintain recommended nitrogen gas pressure.

Charge only with dry nitrogen. Rated working pressure is 21 500 kPa (3120 psi), see your John Deere dealer.
