Dual Zone Adjust Rear Chaffer—Adjusting
H121327-UN-24APR17

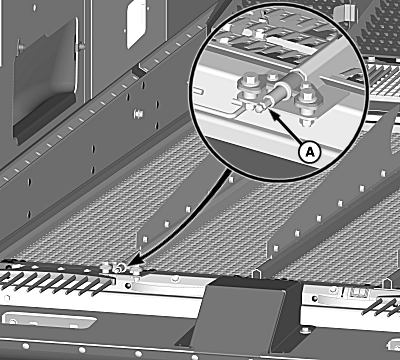

A - Adjustment Linkage
Shut OFF engine, set park brake and remove key to help prevent accidental starting and personal injury.Raise chopper/spreader assembly.
Turn adjustment linkage (A) clockwise to close the chaffer and counterclockwise to open the chaffer.
Close chaffer louvers past the desired set point and then open louvers to the desired set point to remove play.
See Crop Settings section for recommended Dual Zone Adjust Rear Chaffer settings.
Measure distance between louvers and verify setting.
|
