Feed Accelerator Belt—Adjusting
H121336-UN-25APR17

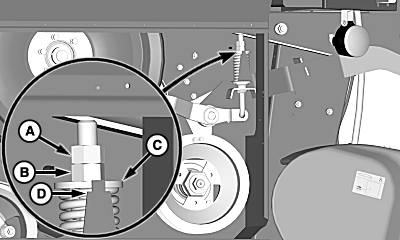

A - Nut
B - Nut
C - Washer
D - Gauge
Shut OFF engine, set park brake and remove key.Feed accelerator belt idler is on the right-hand side of the machine behind the feeder house pivot.
Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
|
