Engine Debris Management Belt—Replacing (Final Tier 4/Stage IV)
H121348-UN-25APR17

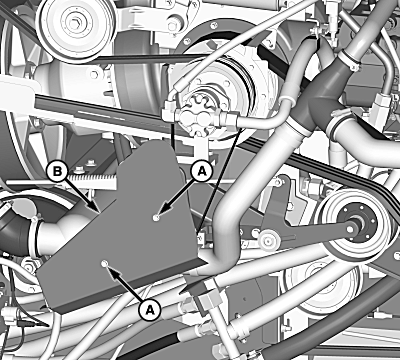

A - Cap Screws
B - Shield
Shut OFF engine, set park brake and remove key.Remove cap screws (A) and shield (B).
H108293-UN-18JUN13

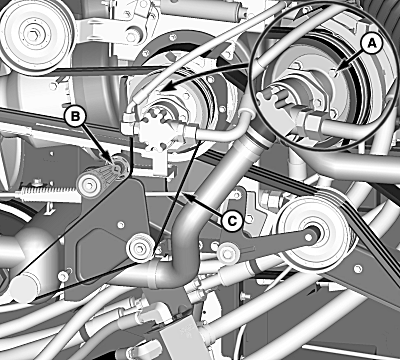

A - Cap Screws
B - Tensioner Arm
C - Engine Debris Management Belt
Remove cap screws (A) and support pump assembly out of the way.Remove belt and install replacement belt in reverse order.
Align pump assembly with sheave and tighten cap screws to specification.
| Cap Screws | Torque | 80 N·m (59 lb·ft) |
Use breaker bar to relieve tension from the tensioner arm (B) to install the engine debris management belt (C).
Install shield and retain with cap screws.
|
