Fire Extinguisher Locations

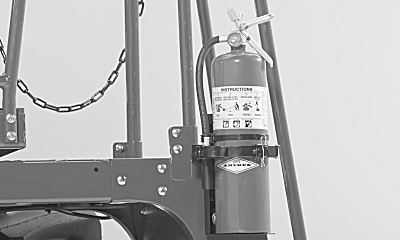

H96654-UN-27MAY10

Front Fire Extinguisher Location

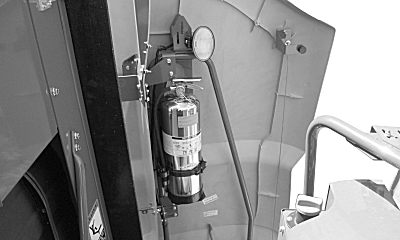

H121423-UN-01MAY17

Rear Fire Extinguisher Location

• A general-purpose powder fire extinguisher that is at least 4 kg (8.8 lb)
• A pressurized liquid fire extinguisher with minimum volume of 8 L (2.1 gal)

Fire extinguishers shown may vary depending on country requirements and fire extinguisher manufacturers.

A general-purpose powder fire extinguisher is on the front ladder platform.

A pressurized liquid fire extinguisher is on the inside of the right-hand rear engine access door.
