Warning Lights—Replacing

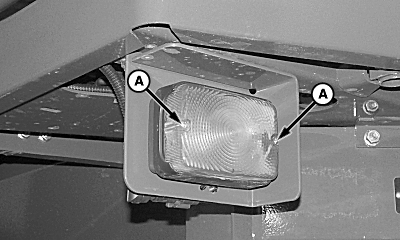

H121714-UN-07JUN17
Right-Hand Front Warning Light
A - Bulb Assembly
Remove screws (A) from lens cover.
Remove light bulb by pushing in and turning counterclockwise.
Replacement light bulbs are sensitive to skin contact.
Wear protective gloves or avoid touching light bulb surface.
Install bulb and lens cover in reverse order.
|
|
OUO6075,000475A-19-20170627
|
|
