Hydrostatic Charge Filter

1.

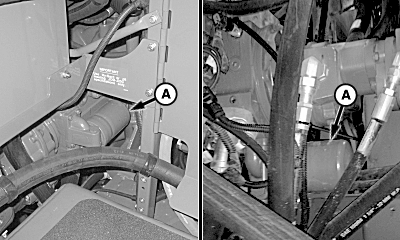

   H121740-UN-12JUN17

   Style A / Style B


   H121741-UN-12JUN17

   Style C

   Depending on machine configuration, style and location of Hydrostatic Charge Filter varies.

   It is not necessary to drain system when replacing filters.

   Remove filter (A).

---




2. Replace filter and coat new seal with oil.

3. Style A and Style B: Hand tighten, then tighten to specification.

   Hydrostatic Charge Filter	Torque	45 N·m (33 lb·ft)

   Style C: Hand tighten, then tighten 1/2 turn more.
