Beacon Lights—Replacing

H111428
H111428-UN-12JUN14

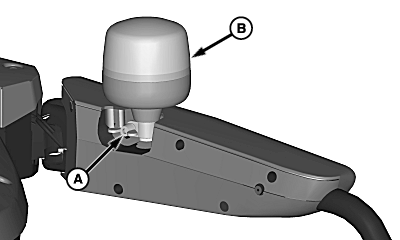

A - Wing Nut

B - Beacon Light

Raise feeder house and lower safety stop before replacing beacon lights.

Loosen wing nut (A) and remove beacon light (B) from the electrical outlet.

Remove and replace beacon light assembly.

Push down on beacon light assembly to ensure that there is good connection with the electrical outlet and tighten the wing nut.

Repeat on remaining lights as needed.

OUO6075,000478A-19-20170628
