Feeder House Drum (Hydraulic Tilt) (If Equipped)—Height Adjustment
H109756-UN-04FEB14

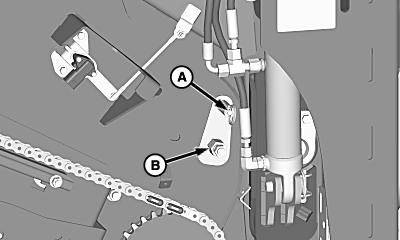

Corn Only Position
H109757-UN-04FEB14

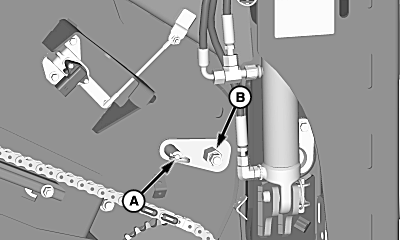

Small Grain Position
A - Pin
B - Drum Height Handle
Raise feeder house, lower safety stop, shut OFF engine, set park brake and remove key.Open feeder house shields.
Pull and hold pin (A) while rotating drum height handle (B) to desired crop position on both sides.
Use a socket or wrench to rotate drum height handle.
Close feeder house shields.
|
