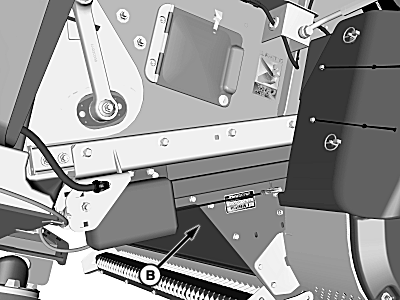

Chopper Access Door
H113088-UN-03MAR15
H113086-UN-02MAR15

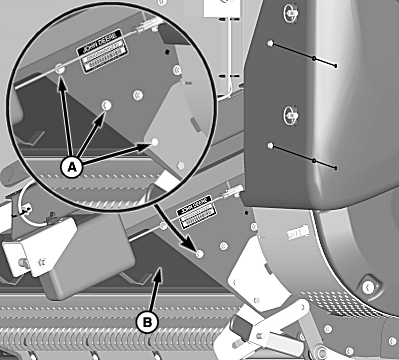

A - Cap Screws
B - Access Door
Shut OFF engine, set park brake and remove key.Remove cap screws (A) from both sides of chopper to remove access door (B).
|
SS43267,0000533-19-20150303 |
