Front Drive Wheel Offset

H65047
H65047-UN-30OCT00

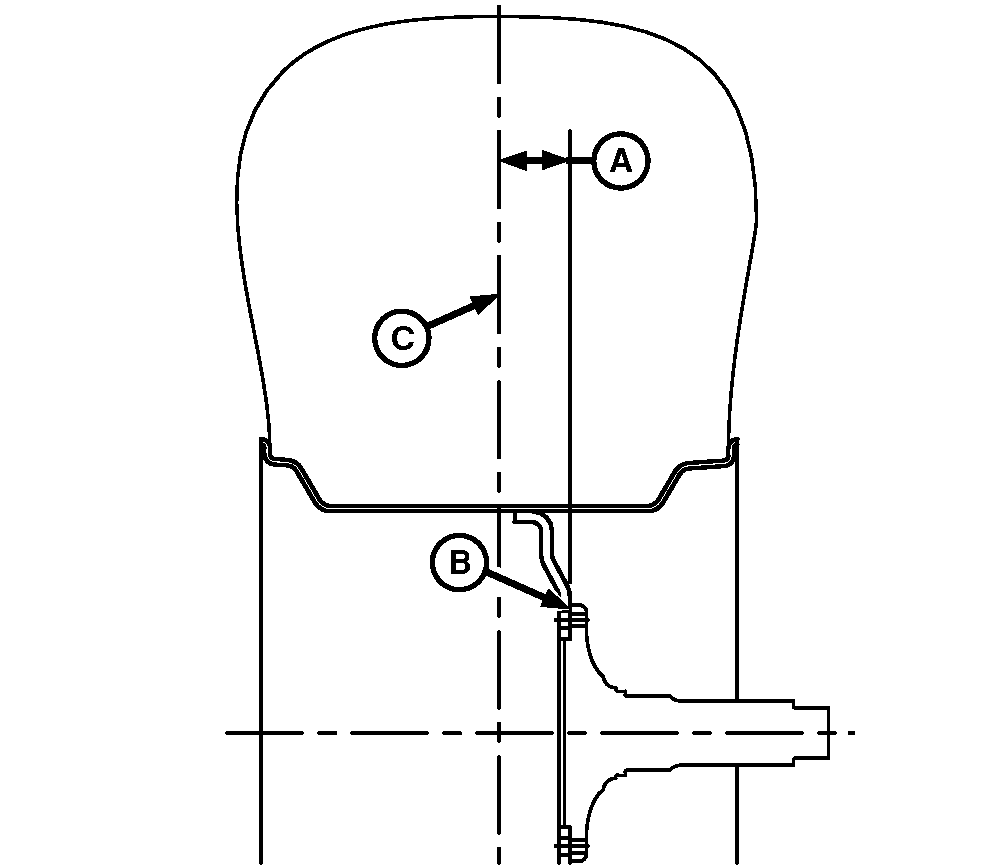

Single Wheel

H65048
H65048-UN-30OCT00

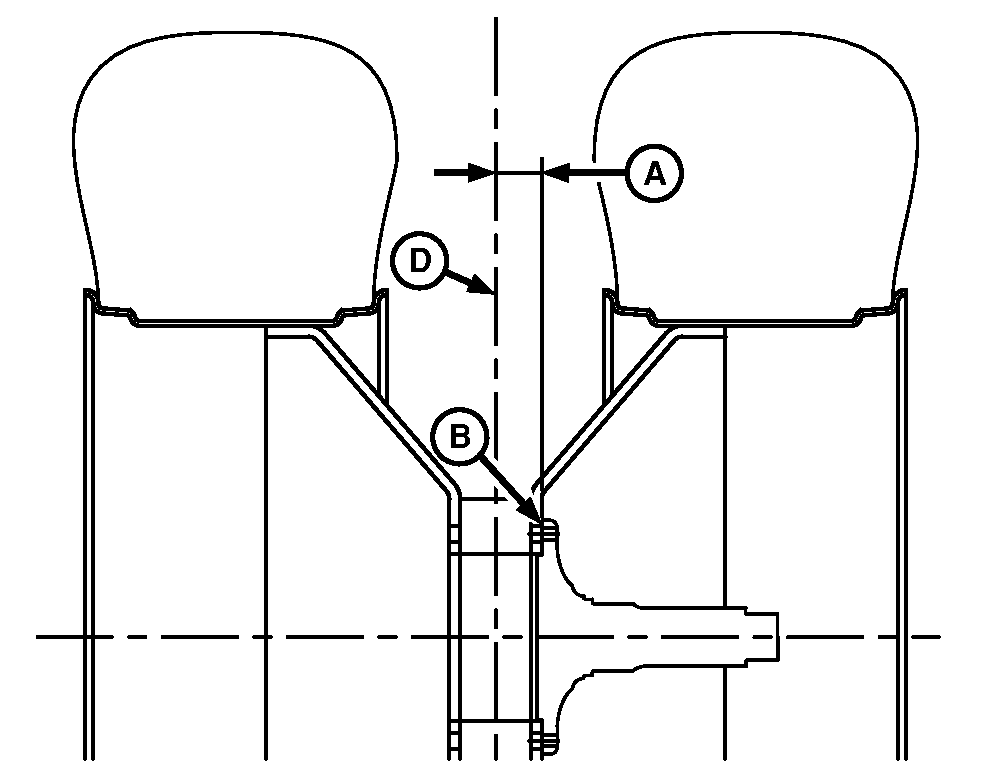

Dual Wheels

A - Dimension

B - Spindle Surface

C - Tire Centerline

D - Centerline of Duals

Avoid serious injury or death resulting from final drive failure and loss of drive wheel during transport or field operation. Do not exceed maximum wheel offset.

Use only John Deere supplied wheels, tires, and spacers. Use of non-John Deere components not meeting specification voids the warranty.

Do not use clamp-on style duals. They do not meet John Deere specification.

Wheel offset distance severely affects life of final drive parts. When installing drive wheels, ensure that offset dimension (A) measured from spindle surface (B) to centerline (C or D) is within specification.

Maximum Wheel Offset

Single Wheel Distance 114.3 mm (4-1/2 in.)

Dual Wheels Distance 50.8 mm (2 in.)
