Rotational Alarm System

H113906
H113906-UN-08MAY15

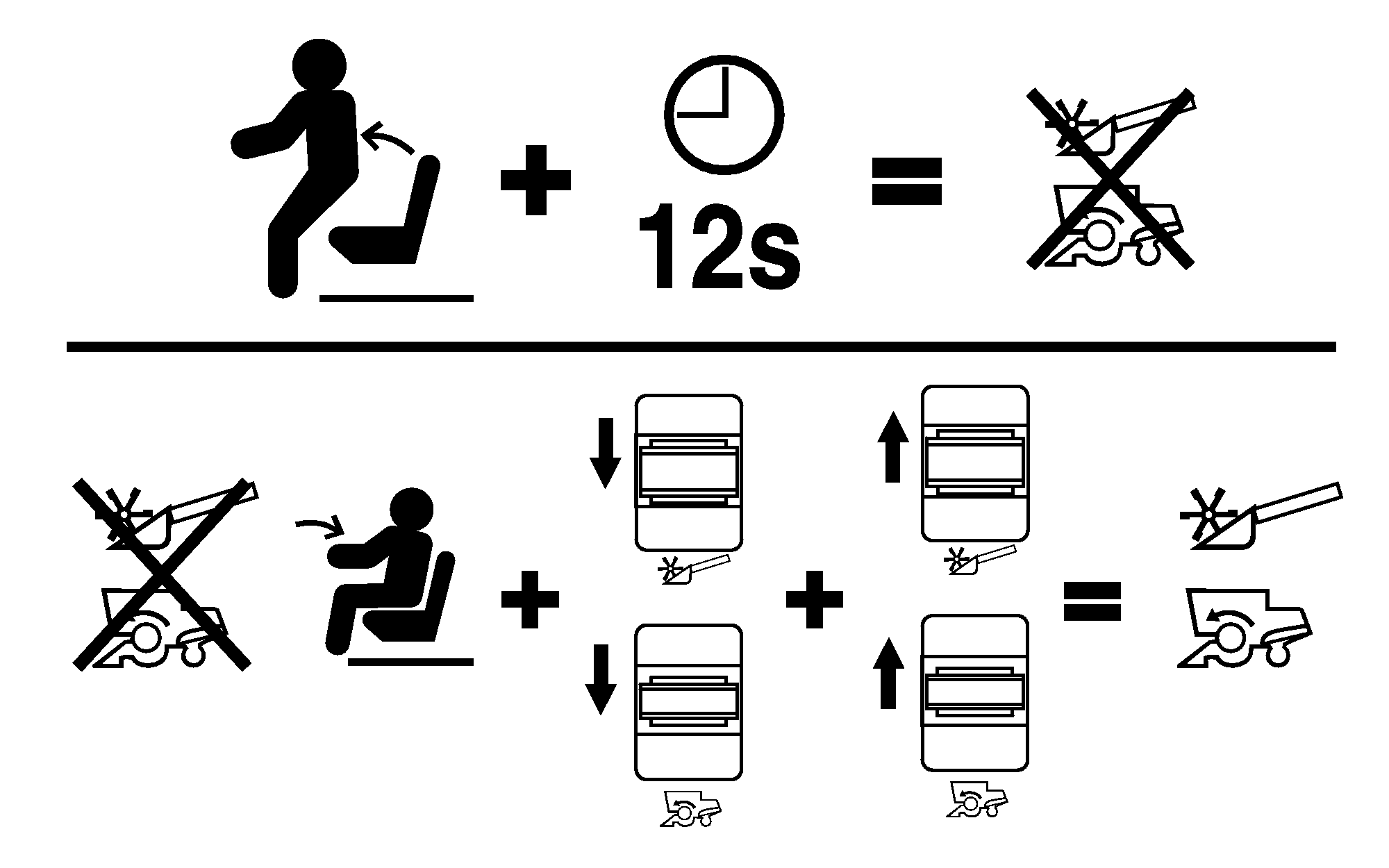

If operator leaves seat with header and or separator engaged, lights flash and an alarm sounds. If operator continues to be out of the seat, harvesting functions stop.

If harvesting functions are stopped, they need to be restarted before continuing to harvest.

To restart harvesting functions, operator must be in seated position and reset and engage separator and header switches on the armrest console.

SS43267,00005D8-19-20150508
