Position Engine Air Scoop (Transport Position)

1.
   H114500-UN-10JUN15


   H111374-UN-06JUN14

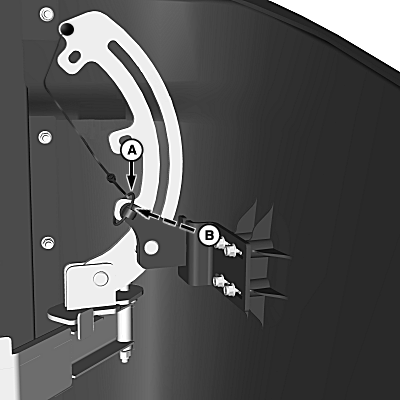

   Standard Field Position

   A - Lock-Out Pin

   B - Holes

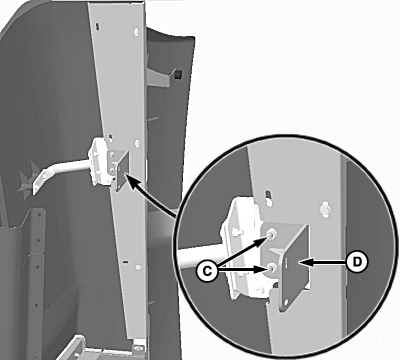

   C - Cap Screws, M8 x 40 and Nuts, M8 (2 used)

   D - Bracket

   Engine air scoop must be placed into transport position when local roadway restrictions apply. Follow your local country regulations.

   Before field operations, engine air scoop must be moved to selected field position.

   Remove lock-out pin (A) and move air scoop inward until holes (B) align.

---




2. Install previously removed lock-out pin.

3. Remove and retain cap screws and nuts (C) and bracket (D).

4.
   H111390-UN-06JUN14


   H111391-UN-06JUN14

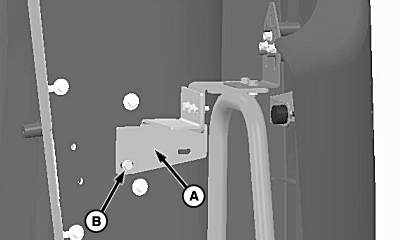

   Transport Position

   A - Bracket

   B - Cap Screw, M8 x 40

   C - Nut, M8

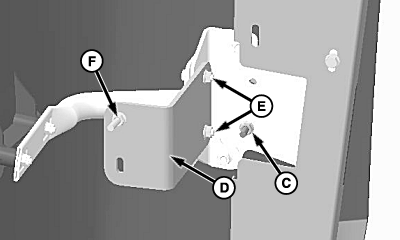

   D - Bracket

   E - Nuts, M8 (2 used)

   F - Cap Screw, M8 x 40 and Nut, M8

   Move air scoop inward and install cap screw through bracket (A) as shown and retain with nut (C).

---




5. Install previously removed bracket (D) and retain with nuts (E).

6. Install previously removed cap screw and nut (F) on bracket as shown.
