Raise/Lower Speed

Raise/Lower Speed controls the speed which the feeder house raises or lowers when using the manual raise/lower buttons on the multi-function lever.

Modify When:

Calibration is needed when changing header regardless of size and type unless previously calibrated.

• Header size and type affect raise/lower speed.
• Increase Raise/Lower Speed if the header is slow to react to changing ground conditions.
• Decrease Raise/Lower Speed if the header over-compensates in changing ground conditions.
• Loading/unloading the header from trailer requires lower raise/lower speed.

Procedure to Modify:

1. Select screen area under Raise/Lower Speed to open Raise/Lower Speed page.


   H113728-UN-19DEC16

   Raise/Lower Speed


   H113513-UN-20DEC16

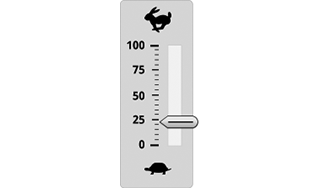

   Slide Bar

   Slide bar displays current speed.

---




2.
   H116141-UN-20DEC16

   Adjustment

   Select plus (+) to increase or minus (-) to decrease desired speed.

   Minimum: 0

   Maximum: 100

   Default: 50

   Increment: 1

---




3.
   H116648-UN-19DEC16

   Close

   Select to close.

---

H116140-UN-19DEC16

Input Field

1. Select to activate Navigation Bar and Armrest Adjustment Dials.

2.
   H115035-UN-14MAR16

   Navigation Bar Adjustment Dial


   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Navigation Bar or Armrest Adjustment Dial to select desired setting.

   Minimum: 0

   Maximum: 100

   Default: 50

   Increment: 1

---
