Tilt Speed

Tilt Speed controls rate of the lateral tilt feeder house movements when in manual rate mode.

Manual Tilt Speed function only works closed center hydraulic machines equipped with lateral tilt feeder house.

Modify When:

Calibration is needed when changing header regardless of size and type unless the specific header was previously calibrated.

• Header size and type affect tilt speed.
• Increase Tilt Speed if the header is slow to react to changing ground conditions.
• Decrease Tilt Speed if the header over-compensates in changing ground conditions.
• Loading/unloading the header from trailer requires slower tilt speed.

Procedure to Modify:

1. Select screen area under Tilt Speed to open Tilt Speed page.


   H113545-UN-19DEC16

   Tilt Speed


   H113514-UN-20DEC16

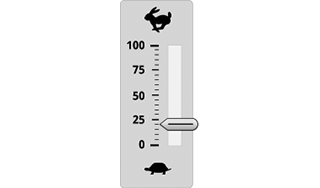

   Slide Bar

   Slide bar displays current speed.

---




2.
   H116141-UN-20DEC16

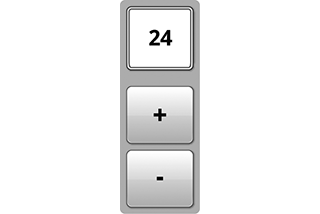

   Adjustment

   Select plus (+) to increase or minus (-) to decrease desired speed.

   Minimum: 0

   Maximum: 100

   Default: 50

   Increment: 1

---




3.
   H116648-UN-19DEC16

   Close

   Select to close.

---

H116140-UN-19DEC16

Input Field

1. Select to activate Navigation Bar and Armrest Adjustment Dials.

2.
   H115035-UN-14MAR16

   Navigation Bar Adjustment Dial


   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Navigation Bar or Armrest Adjustment Dial to select desired setting.

   Minimum: 0

   Maximum: 100

   Default: 50

   Increment: 1

---
