Dial—A—Speed™

Dial-A-Speed™ allows you to change the speed of reel or belt pickup relative to the machine ground speed. Operating speed is a ratio of machine ground speed to reel or belt speed.

Modify When:

• Picking up downed crop. Minimum speed varies based on condition and operator.
• Increase Dial—A—Speed™ if downed crop is not being conveyed.

Set to optimize crop flow:

• Grain is being threshed by the reel, slow it down by decreasing the Dial-A-Speed™.
• Crop is being pushed over by the reel, speed it up by increasing the Dial-A-Speed™.

System Is Enabled When:

• Properly equipped header is connected to machine.
• Engine is running.
• Road transport disconnect switch is in field position.
• Dial—A—Speed™ system is ON.
• Header and Separator are engaged.
• Ground speed is greater than 0.25 km/h (0.16 mph).

H116962-UN-19DEC16

Auto Control

1. Select Auto Control on Header application main screen.

2.
   H116165-UN-19DEC16

   ON/OFF

   Select to turn Dial—A—Speed™ ON/OFF.


   H116168-UN-19DEC16

   Alert Icon

   When a given automation option has issues preventing it from being enabled, the toggle switch is replaced with a generic issue alert button. Selecting this button brings up a message dialogue with information to aid in troubleshooting the issues.

   Depending on machine configurations and the setup of your configurable switches and buttons on the multi-function lever, many combinations exist.

---




3.
   H116346-UN-19DEC16

   Activation Buttons

   Press the desired activation button.

   Dial—A—Speed™ will return to last known adjustment setting.


   H116360-UN-19DEC16

   Dial-A-Speed™

   Dial—A—Speed™ icon appears on the corner post display.

---




4.
   H116352-UN-20DEC16

   Dial-A-Speed™

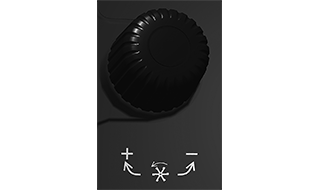

   Change speed using Dial—A—Speed™ adjustment dial.
   • Turn Dial—A—Speed™ adjustment dial clockwise to increase speed.
   • Turn Dial—A—Speed™ adjustment dial counterclockwise to lower/decrease speed.




   H118305-UN-19DEC16

   Numeric Display

   Numeric display on the corner post display shows current speed ratio setting.


   H116352-UN-20DEC16

   Dial-A-Speed™

   Changing speed using Dial—A—Speed™ adjustment dial changes preselected setting. To return back to preselected setting, press programmed activation button.

   The larger the ratio number selected, the faster the reel, or belt pickup, operates with respect to the machine ground speed.

---




5.
   H116648-UN-19DEC16

   Close

   Select to close.

---
