HydraFlex™ Pressure

HydraFlex™ Pressure helps optimize platform ground-following performance. Allows you to vary the cutterbar ground pressure without affecting the cutting height of the crop.

Modify When:

• Cutting off the ground using height sensing arms. HydraFlex™ Pressure can be increased to lock the cutterbar in a rigid position.
• Increase pressure when cutterbar is pushing.
• Decrease pressure when cutterbar rides over the top or leaves uncut crop.

H114076-UN-19DEC16

HydraFlex™ Pressure

1. Select screen area under HydraFlex™ Pressure to open HydraFlex™ Pressure page.

2.

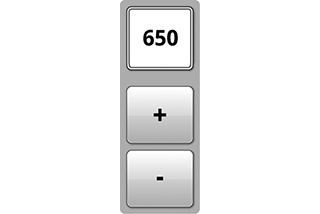

   H116142-UN-20DEC16

   Adjustment

   Select plus (+) to increase or minus (-) to decrease desired pressure.
   • Minimum: 0
   • Maximum: 207 bar (3000 psi)
   • Increment: 4 bar (50 psi)
   • No default



---




3.
   H116648-UN-19DEC16

   Close

   Select to close.

---

Recommended Settings (600FD):

• 75 bar (1100 psi) for firm ground conditions.
• 90 bar (1300 psi) for normal ground conditions.
• 110 bar (1600 psi) for soft ground conditions.

Recommended Settings (600F):

• 75 bar (1000 psi) for firm ground conditions.
• 90 bar (1300 psi) for normal ground conditions.
• 117 bar (1700 psi) for soft ground conditions.

H116143-UN-19DEC16

Input Field

1. Select to activate Navigation Bar and Armrest Adjustment Dials.

2.
   H115035-UN-14MAR16

   Navigation Bar Adjustment Dial


   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Navigation Bar or Armrest Adjustment Dial to select desired setting.
   • Turn dial clockwise to increase value.
   • Turn dial counterclockwise to decrease value.



---
