Cutterbar Tilt

Cutterbar Tilt adjusts angle of the cutterbar in relation to the rest of the platform to optimize harvesting capabilities.

Modify To:

Tilt the cutterbar forward:

• Assist in picking up downed crop.
• Harvest closer to the ground.

Tilt the cutterbar rearward:

• Level out the head while cutting on the ground. This helps prevent picking up rocks, dirt, and foreign objects.
• Prevent cut crop buildup falling from the cutterbar or loss of grain heads at cutterbar.

H114077-UN-19DEC16

Cutterbar Tilt

1. Select screen area under Cutterbar Tilt to open Cutterbar Tilt page.

2.

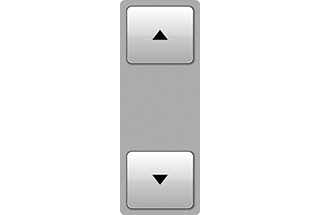

   H116155-UN-20DEC16

   Adjustment

   Select to tilt the cutterbar up or down.

---




3.
   H116648-UN-19DEC16

   Close

   Select to close.

---
